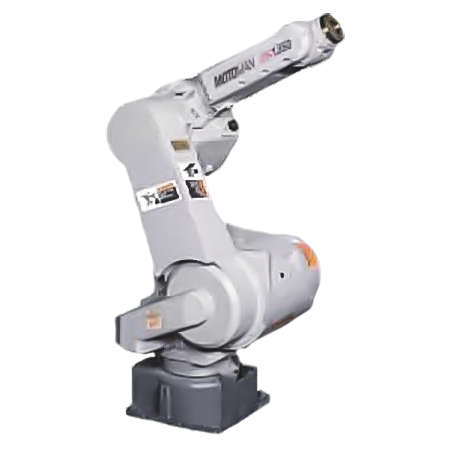

Motoman DX1350
Contact us:
Reach
1355 mm
Axes
6
Reach
1355 mm
Axes
6
Details
The Motoman DX1350 is used in part finishing applications such as material removal, sanding, and grinding. The rigid structure of the Motoman DX1350 XRC compact arm delivers high performance and accurate positioning. An IP67 rated wrist eliminates the need for a protective jacket on the Motoman DX 1350 robot.
There are used Motoman DX1350 robots also available at Robots.com. All used DX1350 robots go through an intense reconditioning process.
Whether you buy a new or used Motoman DX1350 for your production line, it will quickly become evident that it will bring you great success.
Specs
Reach
1355 mm
Axes
6
Repeatability
0.06 mm
Mass
275 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle
Motion Speed
J1
170 °/s (2.97 rad/s)
J2
170 °/s (2.97 rad/s)
J3
170 °/s (2.97 rad/s)
J4
270 °/s (4.71 rad/s)
J5
270 °/s (4.71 rad/s)
J6
460 °/s (8.03 rad/s)
Motion Range
J1
±180°
J2
+145° - 50°
J3
+220° - 140°
J4
±200°
J5
±125°
J6
±360°
