Details

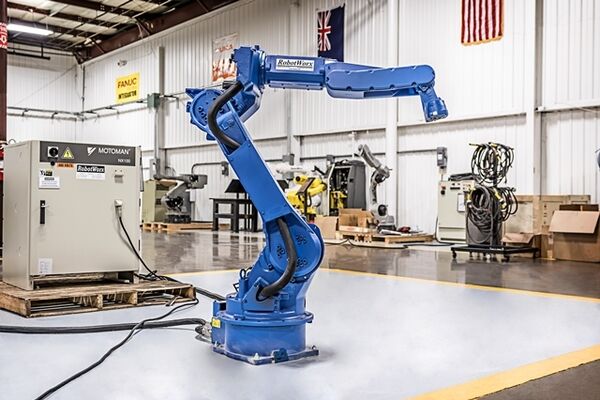

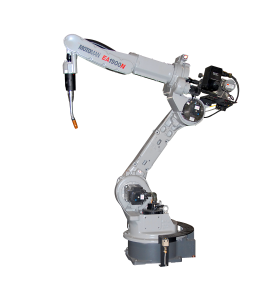

The Motoman EA1900N is a high-performance welding robot that features an internal cable design that was patented to eliminate cable flip. The standard EA1900N NX100 is floor mounted.

The EA1900N from Motoman offers high quality welding with a sturdy arc and optimum torch positioning. There is also a reduction in programming time, which allows manufacturers to integrate the robot into their production even quicker. And with its slim design, the EA1900N can be set up without taking up a lot of space.

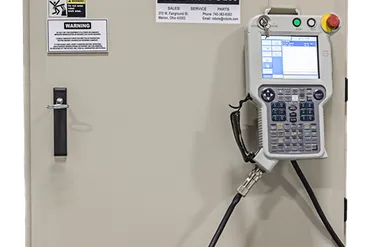

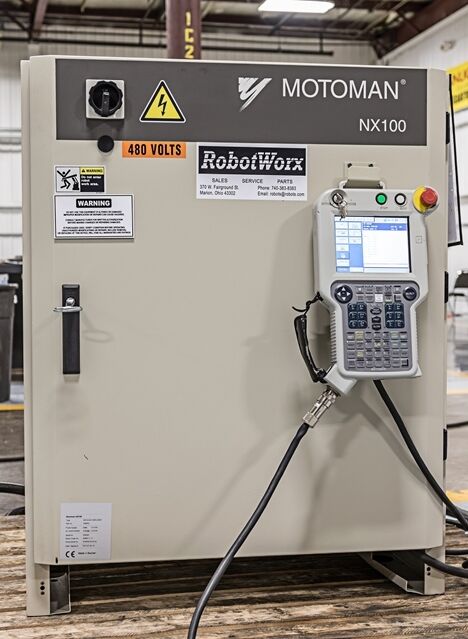

The used EA1900N NX100 robot uses the NX100 controller which is capable of controlling multiple robots. The use of this controller reduces the cost of integration and eliminates the possibility of robot collisions.

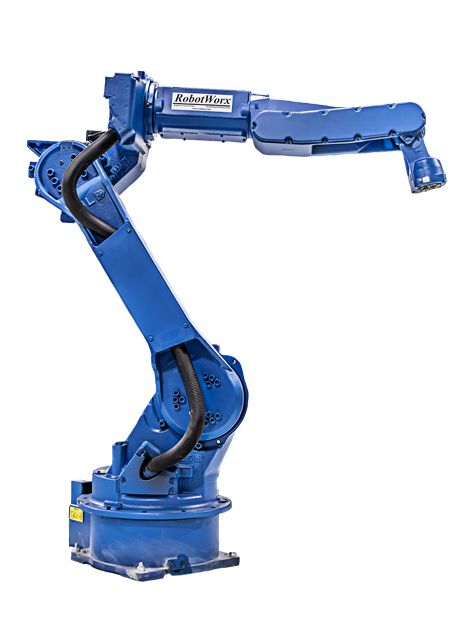

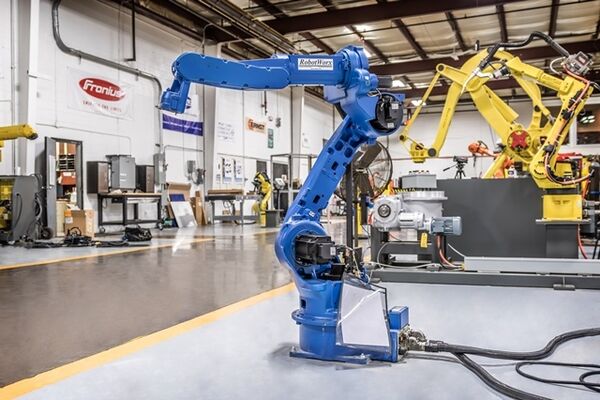

The used Motoman EA1900N is also available at Robots.com. The refurbishment process that Robots.com experts put their refurbished robots through is top of the line, bringing all their used EA1900N robots back to mint condition.

Whether you purchase a new or used EA1900N Motoman welding robot, there is no doubt that it will be a great addition to the shop floor.

Specs

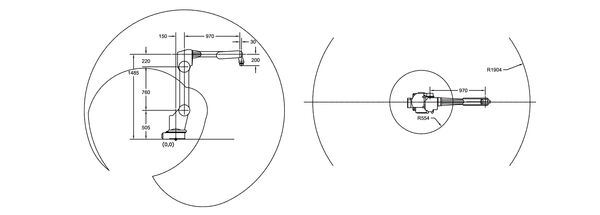

Reach
1904 mm
Axes
6
Repeatability
0.08 mm
Mass
280 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
170 °/s (2.97 rad/s)
J2
170 °/s (2.97 rad/s)
J3
175 °/s (3.05 rad/s)
J4
340 °/s (5.93 rad/s)
J5
340 °/s (5.93 rad/s)
J6
520 °/s (9.08 rad/s)

Motion Range

J1
±180°
J2
+155° - 110°
J3
+255° - 165°
J4
±150°
J5
+180° - 45°
J6
±200°
