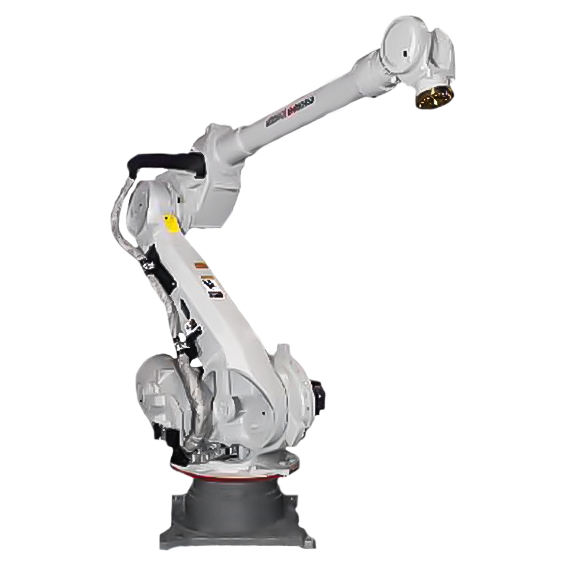

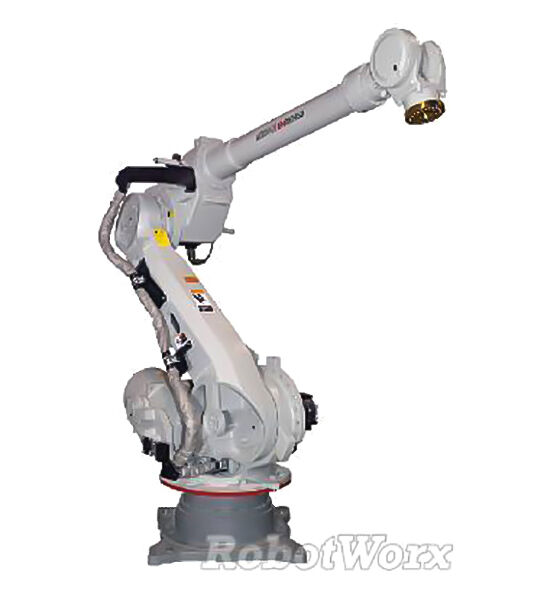

Part of the Expert Handling series, the Motoman EH200-150 features the longest reach and highest repeatability in its class. Specifically designed for heavy duty material handling applications, the EH200-150 NX100 robot's powerful design is ideal for any automation shop.

The EH200-150 has the widest work envelope in its class, due to its extended reach of 3010 mm, and it also has the highest repeatability in its class. These two specifications make the EH200-150 an extremely fast, powerful, and flexible robot.

Robots.com experts also offer the used Motoman EH200 robot that has undergone a rigorous refurbishment process.

When paired with the NX100 controller and MotoSim software, the ability to program the new or used EH200-150 is user-friendly and easier than ever with a Windows interface and easy-to-understand programming language.

Specs

Reach
3010 mm
Axes
6
Repeatability
0.3 mm
Mass
1530 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
110 °/s (1.92 rad/s)
J2
97 °/s (1.69 rad/s)
J3
110 °/s (1.92 rad/s)
J4
175 °/s (3.05 rad/s)
J5
145 °/s (2.53 rad/s)
J6
240 °/s (4.19 rad/s)

Motion Range

J1
±180°
J2
+76° - 60°
J3
+230° - 137.5°
J4
±360°
J5
±130°
J6
±360°
