Details

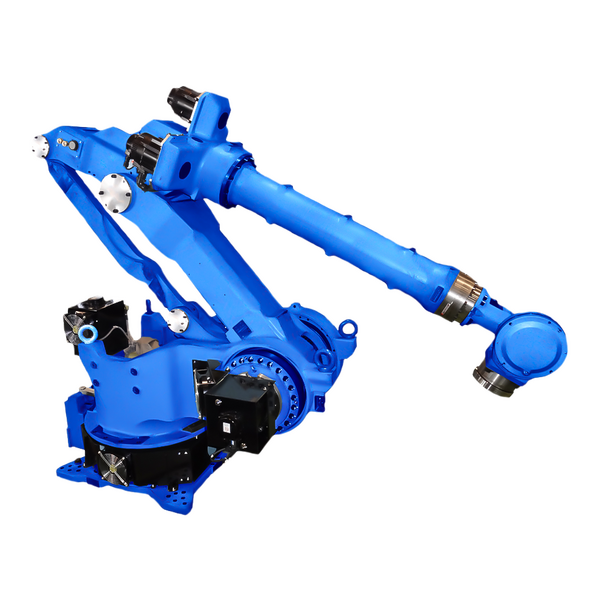

Setting a new standard for speed with a large robot, the Motoman EPH130 robot is 22 percent quicker than the Motoman handling robot counterpart. Designed for press tending applications, the Motoman EPH130 NX100 robot can be used anywhere high performance handling is required. A shelf-mounted version is also available to allow more floor space in the shop. EPH130 robots feature the Motoman NX100 controller. A Windows CE programming pendant and INFORM III programming make the NX100 easy to use while its capability of controlling up to four robots at once help reduce the cost of integration.

If you are looking to cut costs even further, then consider a used Motoman EPH130. The used EPH130 robots go through a rigorous reconditioning process. Whether you buy a new or used Motoman EPH130, you will not be disappointed with the change on your production line!

Specs

Reach
2651 mm
Axes
6
Repeatability
0.2 mm
Mass
1495 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
130 °/s (2.27 rad/s)
J2
130 °/s (2.27 rad/s)
J3
130 °/s (2.27 rad/s)
J4
215 °/s (3.75 rad/s)
J5
180 °/s (3.14 rad/s)
J6
300 °/s (5.24 rad/s)

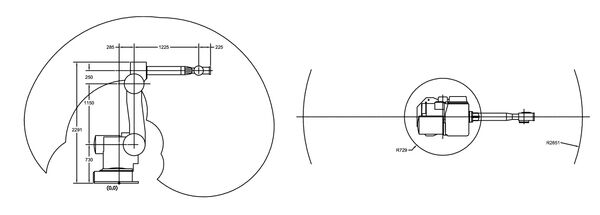

Motion Range

J1
±180°
J2
+76° - 60°
J3
+230° - 137.5°
J4
±360°
J5
±130°
J6
±360°
