3159 mm
Axes
Axes
4

Details

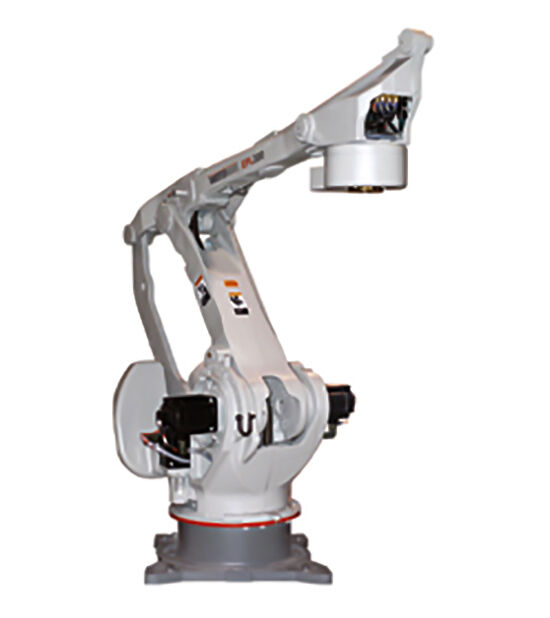

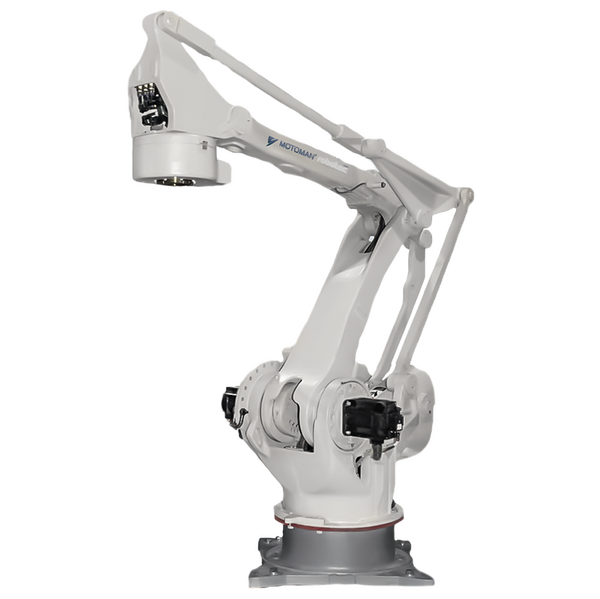

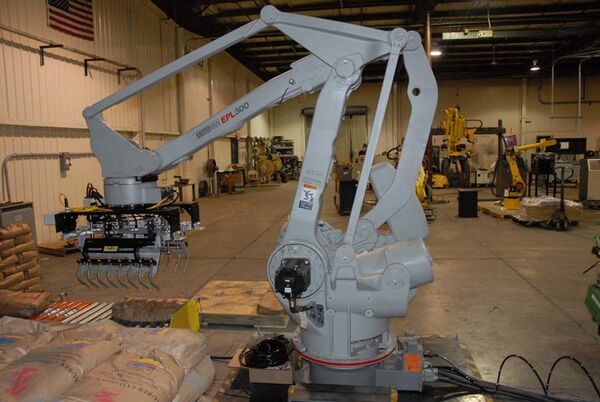

Designed specifically for palletizing applications, the four-axis Motoman EPL300 Expert Palletizing robot is a high-yield manipulator that features internally routed air and I/O signal lines. Robots.com also offers used Motomal EPL300 robots for sale. All refurbished robots go through an intense reconditioning process.

The EPL300 NX100 has a wide 360 degree work envelope that allows it to service multiple infeed conveyors and pallet loading stations.

PC-based off-line programming software is available as an option for the EPL300 NX100 to simplify programming of palletizing applications. EPL-series models are highly reliable, with a 62,000-hour MTBF (Mean Time Between Failure) rating.

Specs

Reach
3159 mm
Axes
4
Repeatability
0.5 mm
Mass
1820 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
90 °/s (1.57 rad/s)
J2
95 °/s (1.66 rad/s)
J3
105 °/s (1.83 rad/s)
J4
195 °/s (3.4 rad/s)

Motion Range

J1
±180°
J2
+90° - 45°
J3
+15.5° - 120°
J4
±360°
