Details

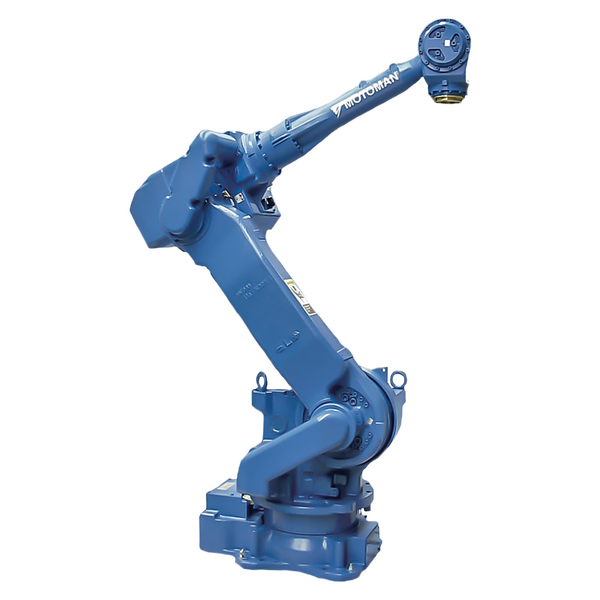

The 5-axis Motoman EPL80 is a high-speed robot designed specifically for palletizing applications. The EPL80 NX100 has a wide, 360 degree work envelope that can service multiple infeed conveyors and a single pallet loading station.

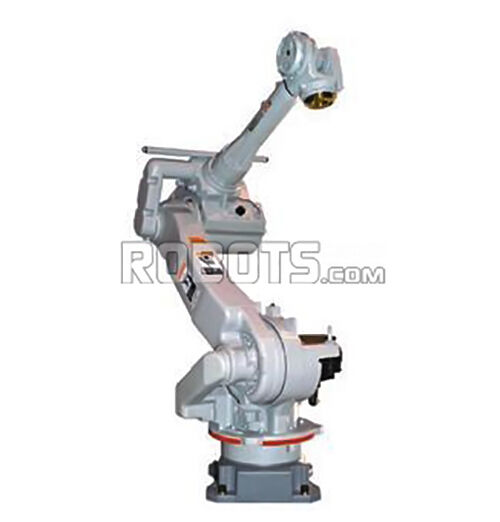

Robots.com also offers used Motoman EPL80 robots for sale. All used EPL80 robots go through an intense reconditioning process and are brought back to mint condition.

The economical new and used EPL80 provides the advantages of high-speed, high-performance palletizing, combined with a slim wrist and compact design. It is ideal as an end-of-line palletizing solution that requires minimal space.

The Motoman EPL80 NX100 is a dedicated palletizing robot with a wide working envelope. The 5-axis design does not use parallel links for the lower or upper arm, which eliminates interference zones within the work envelope. Its fast axial speeds reduce cycle time and increase production output.

Specs

Reach
2046 mm
Axes
5
Repeatability
0.07 mm
Mass
550 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
170 °/s (2.97 rad/s)
J2
170 °/s (2.97 rad/s)
J3
170 °/s (2.97 rad/s)
J4
250 °/s (4.36 rad/s)
J5
350 °/s (6.11 rad/s)

Motion Range

J1
±180°
J2
+135° - 90°
J3
+35° - 160°
J4
±15°
J5
±360°
