Details

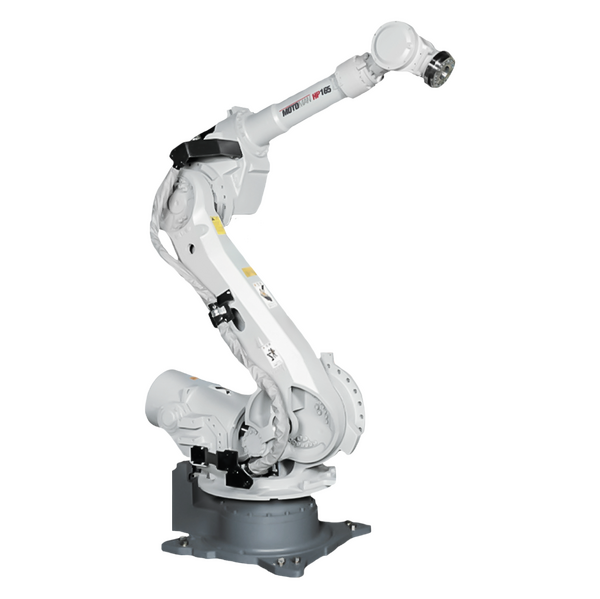

The Motoman HP165 sets the standard for versatility in the large robot market. This high-speed robot offers minimal footprint and superior performance in both spot welding and heavy payload handling applications.

The powerful design of the HP165 NX100, together with Motoman's patented multiple robot control capability, allows the robot to be used as a 6-axis part positioner to achieve unmatched automation flexibility. The work envelope extends behind the body, allowing tools to be placed behind the robot and providing easy access to tools for maintenance.

The used Motoman HP165 is also available at Robots.com. The experts at Robots.com take all of their used HP165 robots through a very meticulous refurbishment process, bringing them back to like-new condition. You can save on initial investment costs by purchasing a used Motoman HP165.

The standard HP165 robot is floor-mounted, but the shelf-mounted version, HP165R NX100, is available for layout flexibility.

Specs

Reach
2651 mm
Axes
6
Repeatability
0.2 mm
Mass
1100 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
110 °/s (1.92 rad/s)
J2
110 °/s (1.92 rad/s)
J3
110 °/s (1.92 rad/s)
J4
175 °/s (3.05 rad/s)
J5
145 °/s (2.53 rad/s)
J6
240 °/s (4.19 rad/s)

Motion Range

J1
±180°
J2
+76° - 60°
J3
+230° - 142.5°
J4
±360°
J5
±130°
J6
±360°
