Details

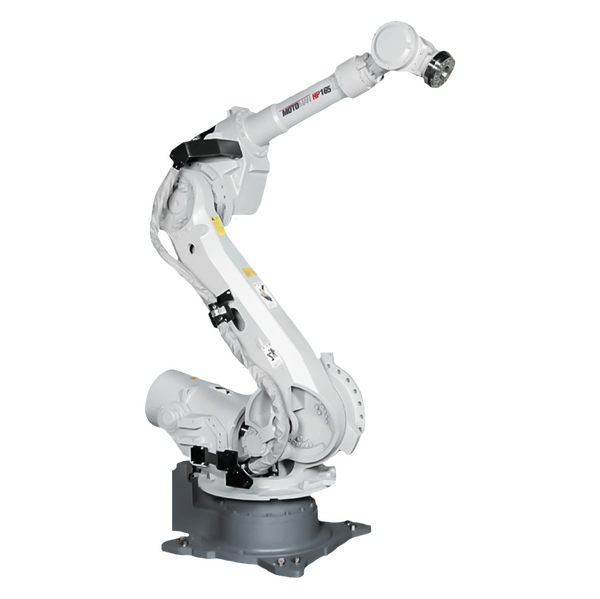

The Motoman HP165R is the shelf-mount version of the Motoman HP165. On shelf-mounted robots, such as Motoman HP 165R NX100, axis 2 is located further forward to increase the depth of the work envelope in a downward direction.

Robots.com also offers used Motoman HP165R robots for sale. The used HP165R robot has undergone Robots.com' intense refurbishment process. Buying a used Motoman HP165R robot is a great way to save money on your initial investment costs.

The new and used Motoman HP165R has advanced Sigma III motors that provide a powerful performance with a slim design that is able to work at the highest repeatability in its class. This model can perform press tending, machine tending, and material handling applications.

Specs

Reach
3140 mm
Axes
6
Repeatability
0.2 mm
Mass
1540 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
105 °/s (1.83 rad/s)
J2
105 °/s (1.83 rad/s)
J3
105 °/s (1.83 rad/s)
J4
175 °/s (3.05 rad/s)
J5
145 °/s (2.53 rad/s)
J6
240 °/s (4.19 rad/s)

Motion Range

J1
±180°
J2
+80° - 130°
J3
+208° - 112°
J4
±360°
J5
±130°
J6
±360°
