Request a Quote 1/4

Contact us:
Reach
Reach
3036 mm
Axes
Axes
6

Details

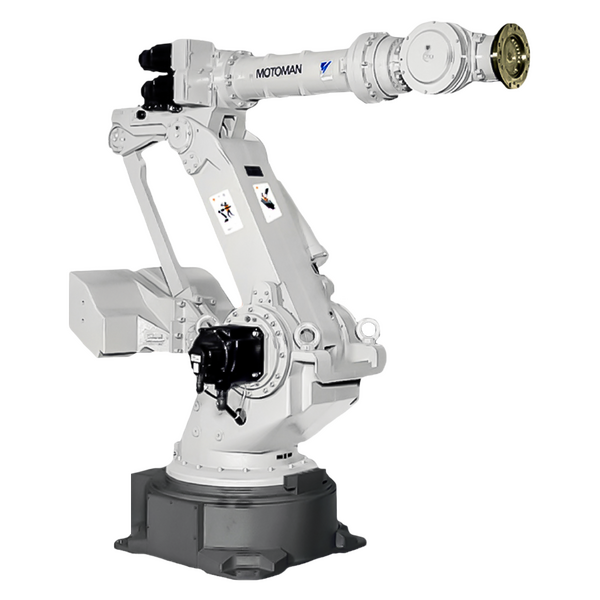

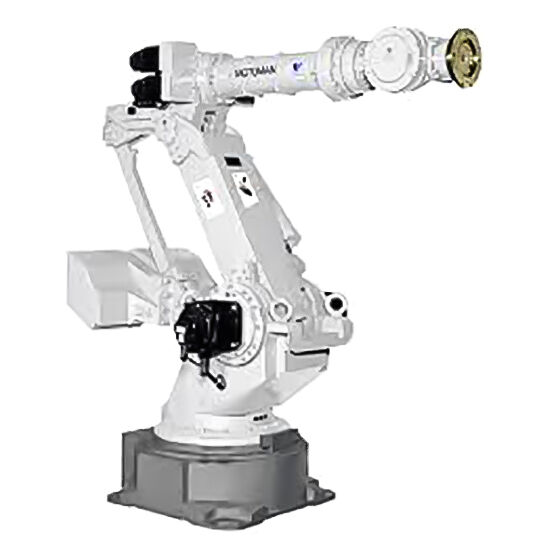

The heavy payload, high-performance Motoman HP350-200 robot is a powerful addition to Motoman's extensive product line. Powerful, flexible, and reliable, the HP350-200 NX100 features parallel-link construction for strength, rigidity, and stabilization of high moment / inertia loads. Heavy-duty bearings provide smooth arm rotation.

Motoman's patented multiple robot control allows the HP350-200 NX100 robot to position large parts for processing by other robots. This jig-less processing is the ultimate form of flexible automation.

There are also a wide range of refurbished robots available for sale, including the used Motoman HP350-200. The used HP350-200 has undergone an intense refurbishment process and will be working like-new!

Specs

Reach
3036 mm
Axes
6
Repeatability
0.5 mm
Mass
2250 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
95 °/s (1.66 rad/s)
J2
95 °/s (1.66 rad/s)
J3
95 °/s (1.66 rad/s)
J4
100 °/s (1.75 rad/s)
J5
100 °/s (1.75 rad/s)
J6
160 °/s (2.79 rad/s)

Motion Range

J1
±150°
J2
+61° - 55°
J3
+30° - 113°
J4
±360°
J5
±125°
J6
±360°
