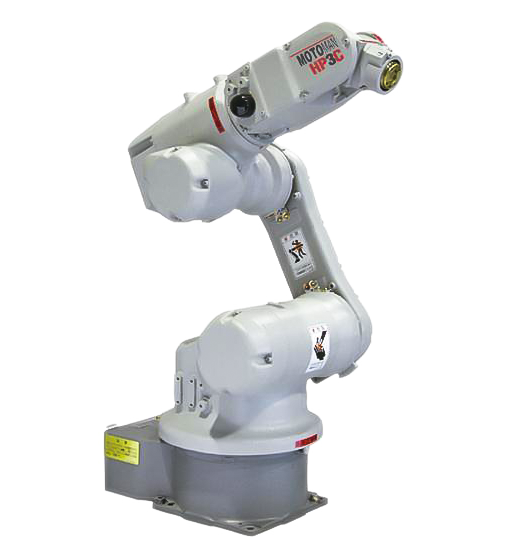

Motoman HP3XF
Contact us:
Details
The Motoman HP3XF is an extra high-speed robot that requires minimal installation space. The S-Axis has a higher speed than the standard HP3 model. The HP3XF NX100 offers superior performance in small part applications such as assembly, dispensing, packaging, material handling, and machine tending.
Robots.com also offers a variety of refurbished robots, including the used Motoman HP3XF. Get your new or used motoman HP3XF, today!
Specs
Reach
701 mm
Axes
6
Repeatability
0.03 mm
Mass
47 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle
Motion Speed
J1
250 °/s (4.36 rad/s)
J2
180 °/s (3.14 rad/s)
J3
225 °/s (3.93 rad/s)
J4
375 °/s (6.54 rad/s)
J5
375 °/s (6.54 rad/s)
J6
500 °/s (8.73 rad/s)
Motion Range
J1
±170°
J2
+150° - 45°
J3
+210° - 152°
J4
±190°
J5
±125°
J6
±360°
