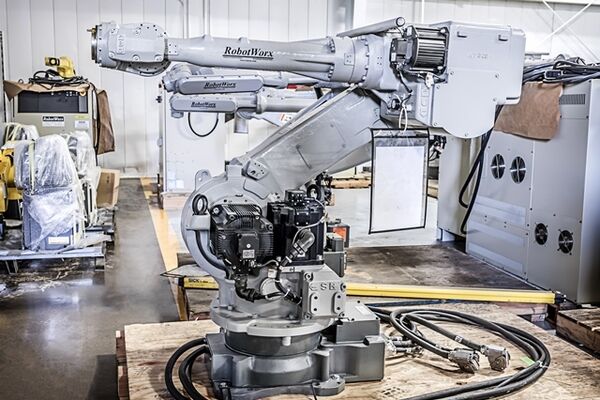

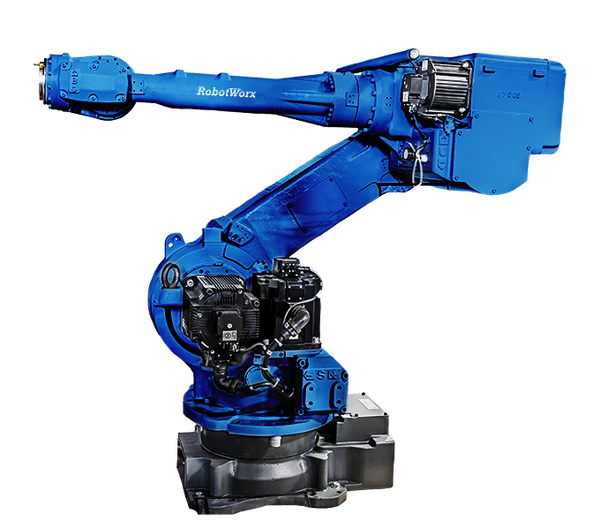

Motoman HP50
Contact us:
Details
The Motoman HP50 is a sleek, high-speed robot that requires minimal installation space. It offers superior performance in machine tending, dispensing, handling and material removal applications.
The HP50 NX100 features a streamlined body that allows it to be placed close to machines for the loading and unloading of parts. The advanced Sigma motors provide smooth, swift motion on demand. The Motoman HP50 NX100 features the advanced, high-performance NX100 Controller.
Robots.com also offers a variety of refurbished robots, including the used Motoman HP50.
Specs
Reach
2046 mm
Axes
6
Repeatability
0.07 mm
Mass
550 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
170 °/s (2.97 rad/s)
J2
170 °/s (2.97 rad/s)
J3
170 °/s (2.97 rad/s)
J4
250 °/s (4.36 rad/s)
J5
250 °/s (4.36 rad/s)
J6
350 °/s (6.11 rad/s)
Motion Range
J1
±180°
J2
+135° - 90°
J3
+280° - 160°
J4
±360°
J5
±125°
J6
±360°
