Details

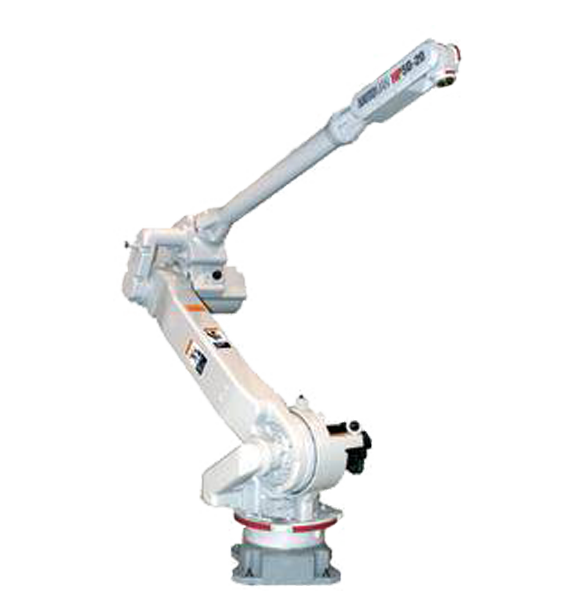

The Motoman HP50-20 is a dynamic, high-speed robot featuring an extended reach. This makes it ideal for processing large parts. It offers superior performance in arc welding, coating, dispensing, and material cutting applications. In many cell layouts, the HP50-20 NX100 robot has an extended reach eliminates the need for external axis tracks. This reduces the system cost and simplifies programming.

The used Motoman HP50-20 robot is also available through Robots.com. Robots.com representatives spend a lot of time and meticulous effort reconditioning the robots and bring them back to mint condition.

Specs

Reach
3106 mm
Axes
6
Repeatability
0.15 mm
Mass
495 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
170 °/s (2.97 rad/s)
J2
170 °/s (2.97 rad/s)
J3
170 °/s (2.97 rad/s)
J4
335 °/s (5.85 rad/s)
J5
335 °/s (5.85 rad/s)
J6
510 °/s (8.9 rad/s)

Motion Range

J1
±180°
J2
+135° - 90°
J3
+251° - 160°
J4
±190°
J5
+230° - 50°
J6
±360°
