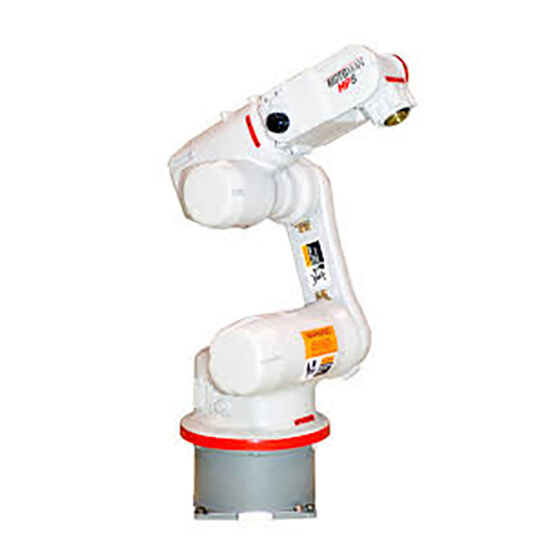

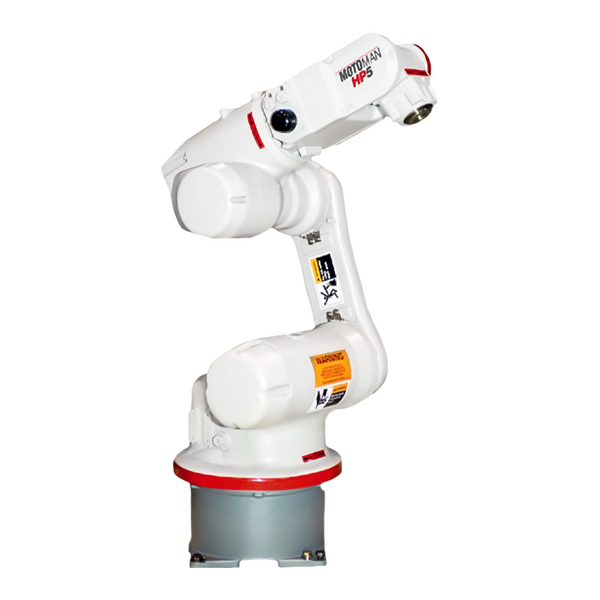

If you need a fast automation robot with a 5 kg payload, the Motoman HP5C should be a consideration. Requiring minimal installation space, the Motoman HP5C NXC100 is a compact, extra high-speed robot. This HP5C robot features a higher payload of 5 kg.

Robots.com offers a wide range of refurbished robots, including the used Motoman HP5C. It has also undergone an intense refurbishment process, bringing it back to mint condition.

The new and used HP5C NXC100 offers superior performance in small part applications such as assembly, dispensing, packaging, material handling, and machine tending. You won't be disappointed with either a new or used Motoman HP5C robot.

Specs

Reach
701 mm
Axes
6
Repeatability
0.03 mm
Mass
47 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
250 °/s (4.36 rad/s)
J2
180 °/s (3.14 rad/s)
J3
225 °/s (3.93 rad/s)
J4
375 °/s (6.54 rad/s)
J5
375 °/s (6.54 rad/s)
J6
500 °/s (8.73 rad/s)

Motion Range

J1
±170°
J2
+150° - 45°
J3
+120° - 152°
J4
±190°
J5
±125°
J6
±360°
