Details

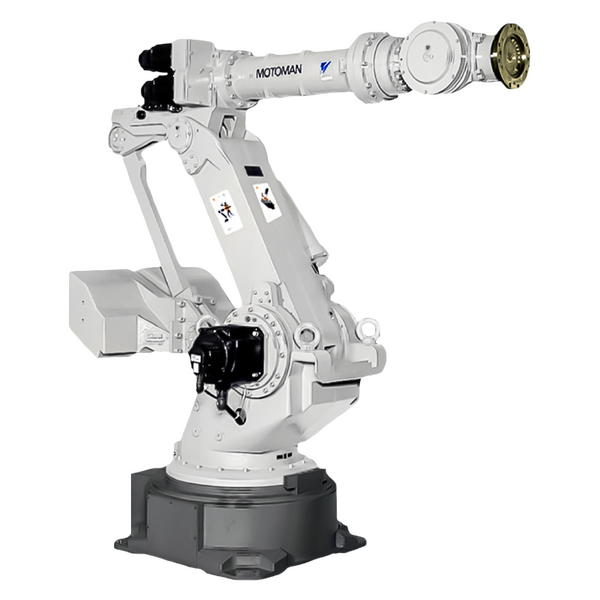

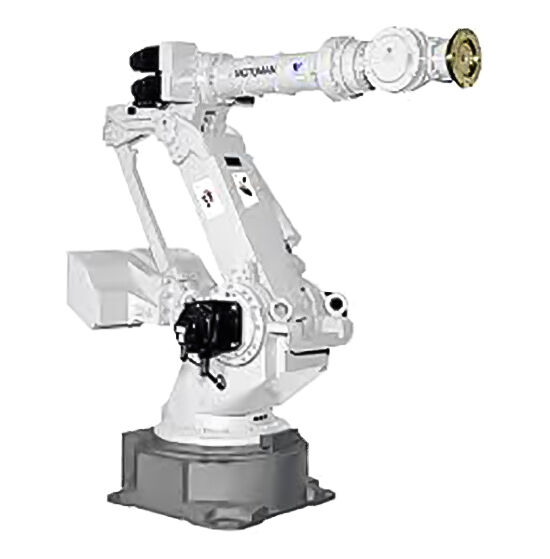

The high-performance, heavy payload Motoman HP600 robot is a powerful addition to Motoman's extensive product line. The Motoman HP600 features parallel-link construction for strength, rigidity, and stabilization of high moment/inertia loads. Heavy-duty bearings provide smooth arm rotation. Its large payload is combined with a generous reach for versatility with extremely heavy loads.

There are also used Motoman HP600 robots available for sale at Robots.com. Robots.com experts take pride in their refurbishment process and spend meticulous effort bringing them back to like-new condition.

Motoman's patented multiple robot control allows the HP600 robot to position large parts for processing by other robots. This jigless processing is the ultimate form of flexible automation. The HP600 can use the DX100 or the NX100 controller.

Specs

Reach
2542 mm
Axes
6
Repeatability
0.5 mm
Mass
2400 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
60 °/s (1.05 rad/s)
J2
70 °/s (1.22 rad/s)
J3
70 °/s (1.22 rad/s)
J4
80 °/s (1.4 rad/s)
J5
80 °/s (1.4 rad/s)
J6
160 °/s (2.79 rad/s)

Motion Range

J1
±150°
J2
+55° - 61°
J3
+113° - 30°
J4
±360°
J5
±125°
J6
±360°
