Details

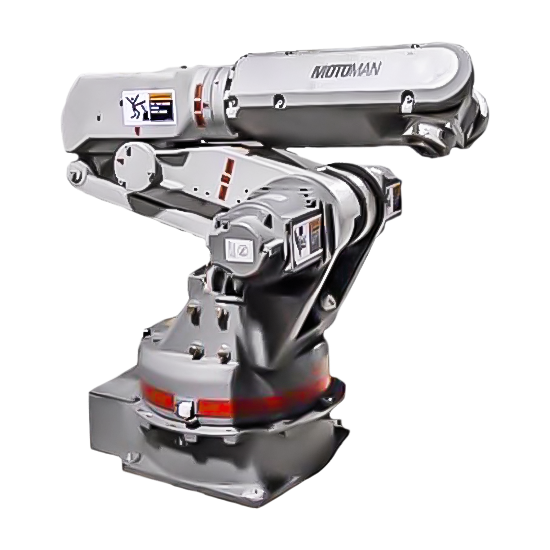

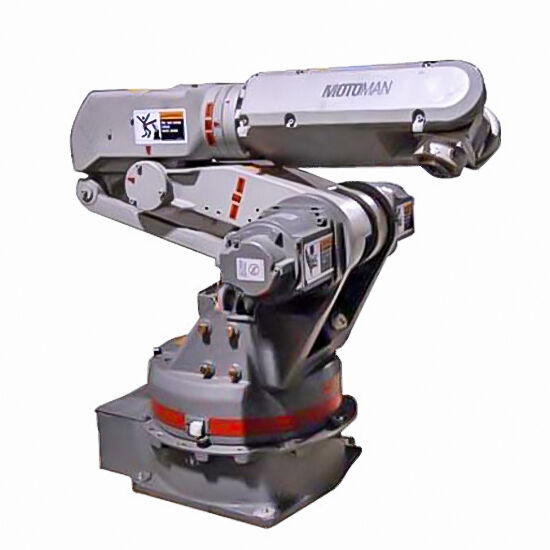

The Motoman K3 is a compact robot with a 3 kg payload and an MRC controller. It features a small footprint and fast cycle rates of 2.5m/s. The K3S is the standard K3 model and can be floor, ceiling, or wall mounted. There are also used Motoman K3 robots available at Robots.com. The experts at Robots.com put all of their reconditioned robots through a meticulous refurbishment process, bringing them all back to like-new condition.

The new and used Motoman K3 is a vertical jointed-arm type robot with six axes. Applications include arc welding, assembly, and material handling.

The new and used Motoman K3CR is a Class 1 certification clean room robot with all of the features of the Motoman K3S robot. The K3 can use either the ERC or MRCcontroller.

Specs

Reach
859 mm
Axes
6
Repeatability
0.1 mm
Mass
52 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
150 °/s (2.62 rad/s)
J2
200 °/s (3.49 rad/s)
J3
200 °/s (3.49 rad/s)
J4
280 °/s (4.89 rad/s)
J5
280 °/s (4.89 rad/s)
J6
420 °/s (7.33 rad/s)

Motion Range

J1
±340°
J2
±240°
J3
±260°
J4
±360°
J5
±270°
J6
±400°
