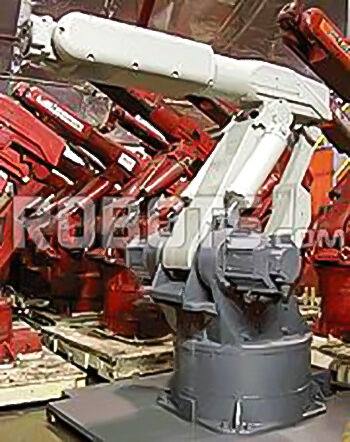

Rugged and versatile, the Motoman K60 is a high-speed robot requiring a minimum amount of factory floor space. This allows placement close to the work-piece holding fixture, improving part accessibility.

There are also a wide range of refurbished robots available, including the used Motoman K60. A purchase of the used Motoman K60 will produce the same amazing results, for a reduced cost.

Whether you purchase new or used, this is superior robot in both welding and handling applications. The Motoman K60 uses advanced Sigma motors, providing smooth, swift motion on demand. Other K60 robotic features include a durable cyclodial wrist design and an optimized medium payload design. This model is also known as the Motoman K60S. The K60 can use an ERC or the MRC controller.

Specs

Reach
2003 mm
Axes
6
Repeatability
0.3 mm
Mass
980 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
115 °/s (2.01 rad/s)
J2
115 °/s (2.01 rad/s)
J3
115 °/s (2.01 rad/s)
J4
160 °/s (2.79 rad/s)
J5
160 °/s (2.79 rad/s)
J6
240 °/s (4.19 rad/s)

Motion Range

J1
±300°
J2
±115°
J3
±140°
J4
±380°
J5
±270°
J6
±700°
