Details

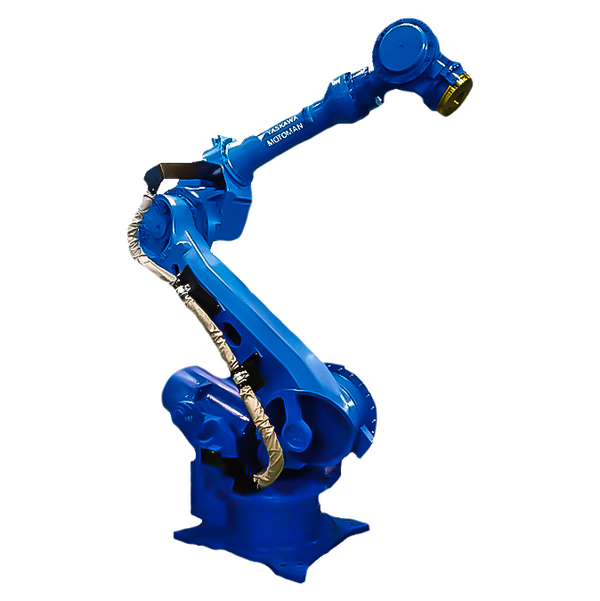

Yaskawa Motoman MH215 was developed as a large payload robot that not only excels at large product handling, but is also versatile enough for precision cutting and spot welding.

To cut costs even further, you may want to consider a used Motoman MH215. Robots.com is proud to offer a variety of perfectly reconditioned robots, including the used MH215. All of the used Motoman MH215 robots have gone through an intense refurbishment process.

The new and used material handling MH215 DX100 robot can also be used as a parts positioner or a conveyor. It has variants that cover the 165 kg, 185 kg, and 250 kg payload ranges. Available in the new Yaskawa blue, this robot is a welcomed addition to the factory floor.

Specs

Reach
2912 mm
Axes
6
Repeatability
0.2 mm
Mass
1140 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
100 °/s (1.75 rad/s)
J2
90 °/s (1.57 rad/s)
J3
97 °/s (1.69 rad/s)
J4
120 °/s (2.09 rad/s)
J5
120 °/s (2.09 rad/s)
J6
190 °/s (3.32 rad/s)

Motion Range

J1
±180°
J2
+76° - 60°
J3
+230° - 142.5°
J4
±360°
J5
±125°
J6
±360°
