Details

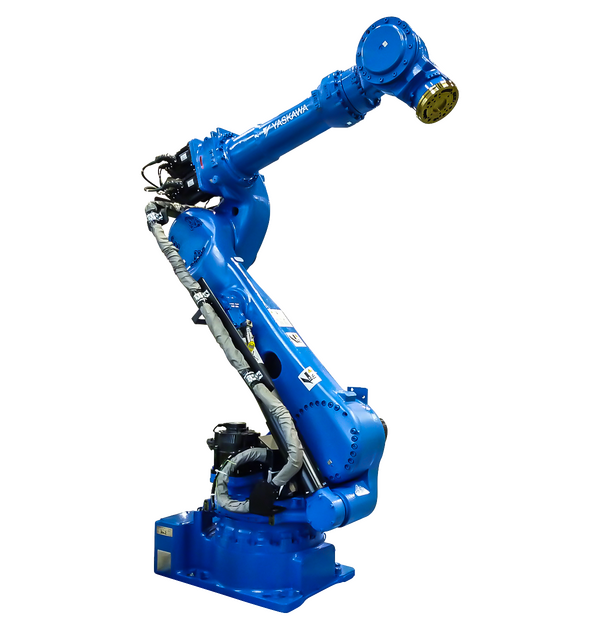

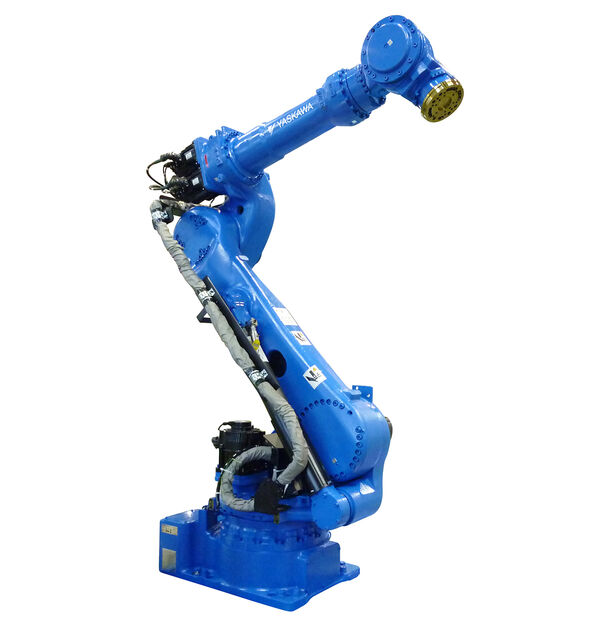

The Motoman MH225 is an advanced material handling robot capable of handling up to 225 kg payload! The MH225 robot comes equipped with the new DX200 controller and can perform material handling, press tending, and machine tending applications at high speeds. Due to its slim design, it takes up minimal floor-space. With a horizontal reach of 2702 mm and vertical reach of 3393 mm, it can increase production with ease. If you are looking for a material handlingrobot that can handle heavy payloads while moving at a fast and efficient pace, the Motoman MH225 DX200 is an excellent choice.

Specs

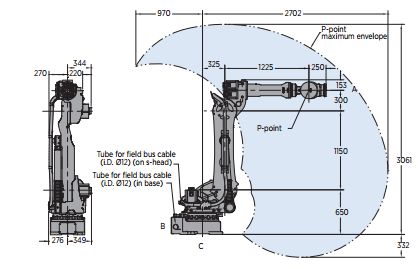

Reach
2702 mm
Axes
6
Repeatability
0.2 mm
Mass
1000 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
120 °/s (2.09 rad/s)
J2
97 °/s (1.69 rad/s)
J3
115 °/s (2.01 rad/s)
J4
145 °/s (2.53 rad/s)
J5
145 °/s (2.53 rad/s)
J6
220 °/s (3.84 rad/s)

Motion Range

J1
±180°
J2
+76° - 60°
J3
+90° - 147°
J4
±360°
J5
+130° - 125°
J6
±360°
