Motoman MH3F
Contact us:
Details

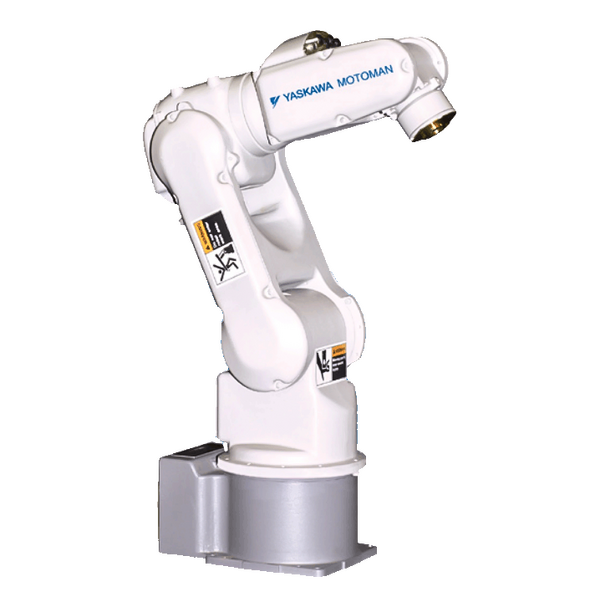

The Motoman MH3F is a compact robot offering high performance and flexibility in applications such as packaging, material handling, and assembly. The MH3F robot has a 3 kg payload and comes equipped with the FS100 controller. The Motoman MH3F FS100 can be mounted on the floor, ceiling, or wall, and supports MotomPlus and MotomanSync.
Specs

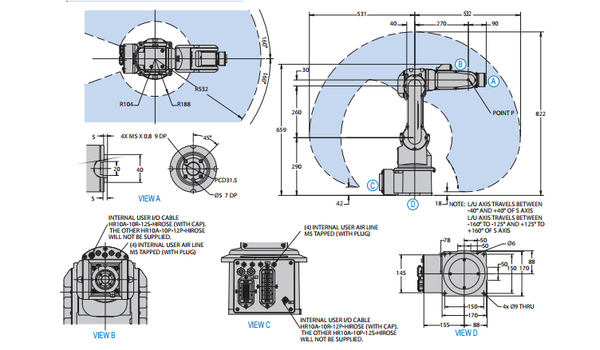

Reach
532 mm
Axes
6
Repeatability
0.03 mm
Mass
27 kg
Structure
Articulated
Mounting
Floor, Inverted, Angled
Motion Speed
J1
200 °/s (3.49 rad/s)
J2
150 °/s (2.62 rad/s)
J3
190 °/s (3.32 rad/s)
J4
300 °/s (5.24 rad/s)
J5
300 °/s (5.24 rad/s)
J6
420 °/s (7.33 rad/s)
Motion Range
J1
±160°
J2
±25°
J3
+90° - 85°
J4
+260° - 105°
J5
±170°
J6
±360°
