Motoman MH50-35
Contact us:
Reach
2538 mm
Axes
6
Reach
2538 mm
Axes
6
Details

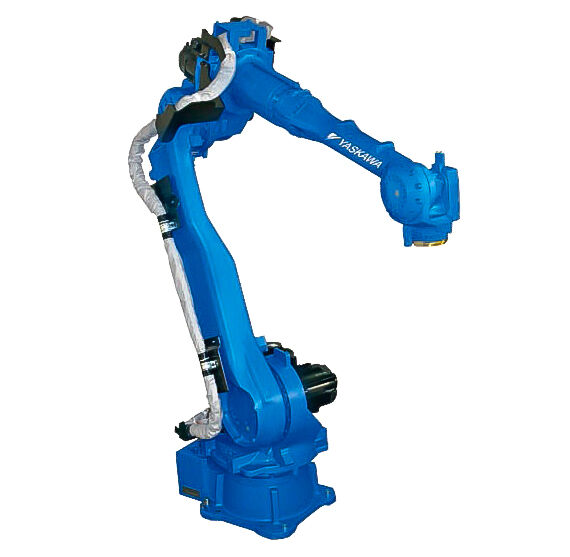

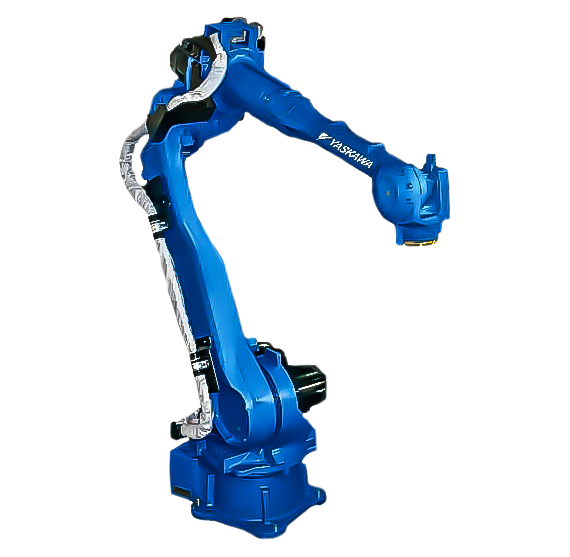

The Motoman MH50-35 industrial robot provides a much larger working envelope. While the payload capacity has been reduced, the MH50-35 DX100 still features a generous 35 kg payload and high-performance motors for maximum performance. There are used MH50-35 robots also available for sale. Every used Motoman MH50-35 has undergone a very meticulous refurbishment process.
The new and used MH50-35 are both compatible with the DX100 controller for optimum performance.
Specs

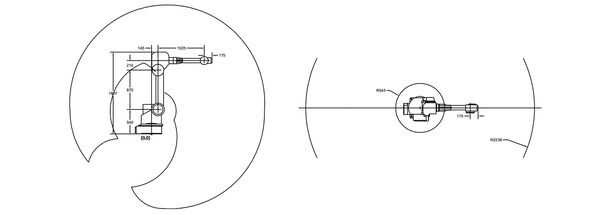

Reach
2538 mm
Axes
6
Repeatability
0.07 mm
Mass
570 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle
Motion Speed
J1
180 °/s (3.14 rad/s)
J2
140 °/s (2.44 rad/s)
J3
178 °/s (3.11 rad/s)
J4
250 °/s (4.36 rad/s)
J5
250 °/s (4.36 rad/s)
J6
360 °/s (6.28 rad/s)
Motion Range
J1
±180°
J2
+135° - 90°
J3
+296° - 160°
J4
±360°
J5
125
J6
±360°
