Details

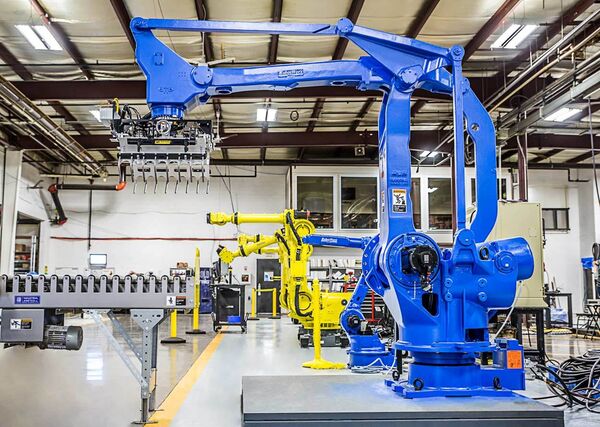

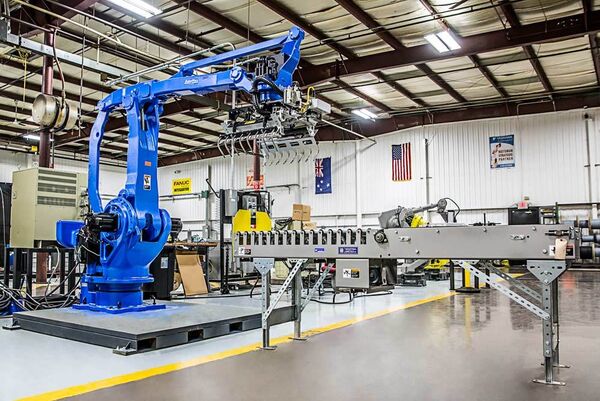

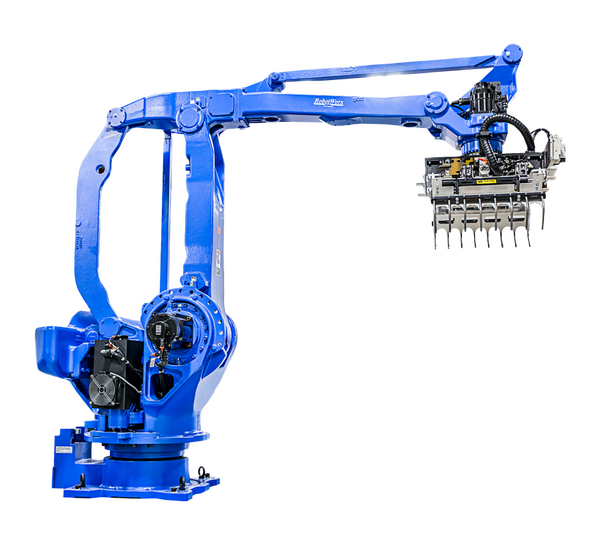

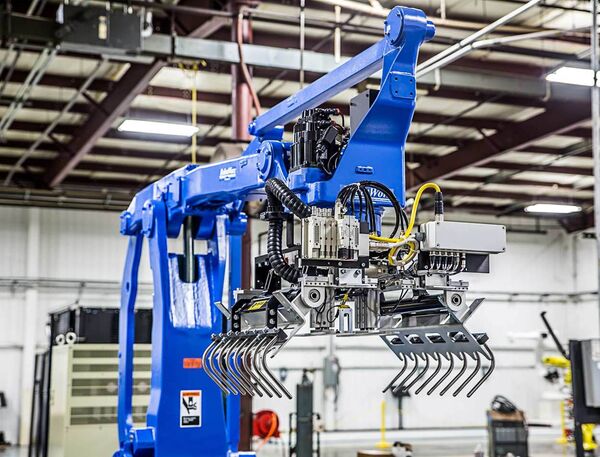

For high demand palletizing jobs, the Motoman MPL160 offers the speed and accuracy needed for maximum production. This four-axis robot arm has internally routed cables and air lines for high system reliability. A hollow wrist aids in wrist motion and increases cable life.

The used Motoman MPL160 robot is also available for sale at Robots.com. Robots.com experts put a great deal of time and effort in refurbishing their refurbished robots and bring them back to like-new condition.

The MPL160 DX100 offers high performance for multiple infeed conveyors and up to four pallet build locations. The optional MotoPallet software works to simplify off-line programming for palletizing applications. The Motoman DX100 and MLX100 robot controllers are compatible with the MPL160 and allows for multiple robot control.

Specs

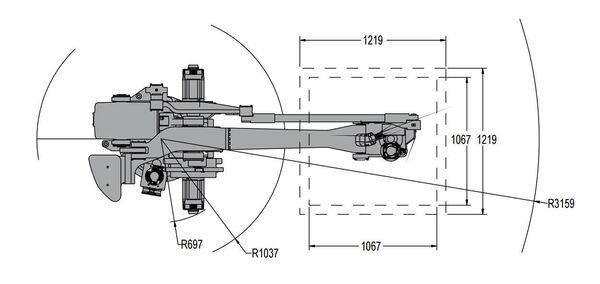

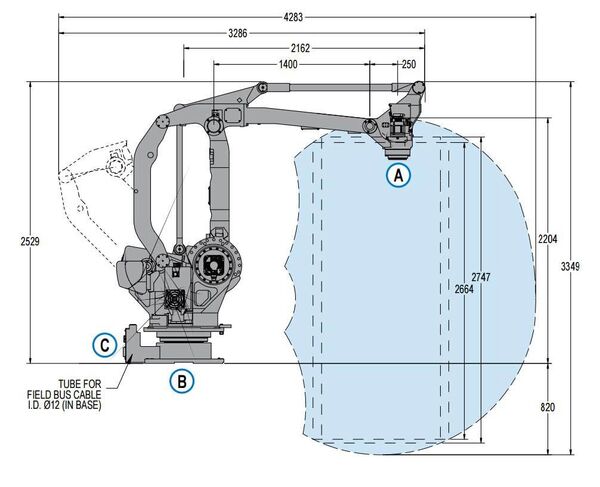

Reach
3159 mm
Axes
4
Repeatability
0.5 mm
Mass
1700 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
140 °/s (2.44 rad/s)
J2
136 °/s (2.37 rad/s)
J3
136 °/s (2.37 rad/s)
J4
305 °/s (5.32 rad/s)

Motion Range

J1
±180°
J2
+90° - 45°
J3
+15.5° - 120°
J4
±360°
