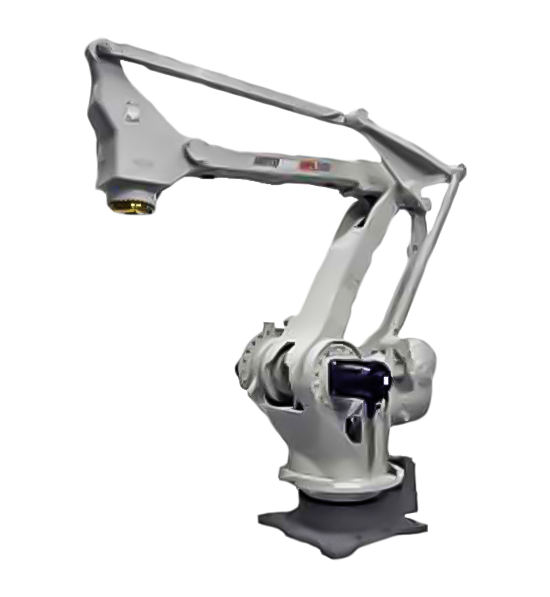

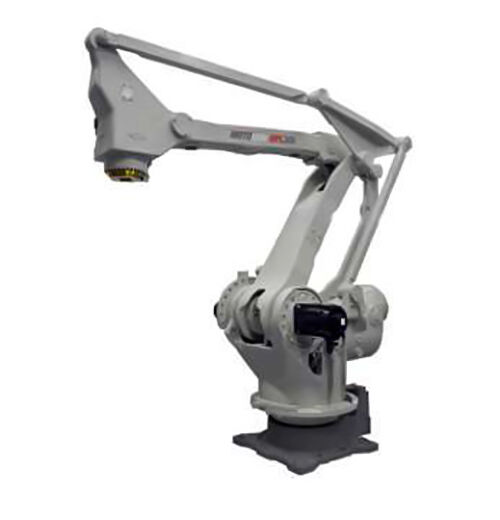

The extensive vertical reach on the Motoman MPL300 helps reduce cycle times during palletizing applications. Features such as pallet handling, layer handling, and the optional EasyPallet Pendant make the MPL300 DX100 an excellent choice to improve the palletizing process.

The used Motoman MPL300 is also available through Robots.com. The experts at Robots.com take pride in their reconditioned robots, sending them through a meticulous refurbishment process and bringing them back to mint condition.

This high performance robot maximizes productivity through fast axial speeds and quick acceleration. Internally routed lines and wiring help extend cable life and improve wrist motions. For maximum productivity, the MPL300 DX100 can service multiple infeed conveyors and up to four pallet build locations. This robot is also compatible with the MLX200 controller.

Specs

Reach
3159 mm
Axes
4
Repeatability
0.5 mm
Mass
1820 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
90 °/s (1.57 rad/s)
J2
100 °/s (1.75 rad/s)
J3
110 °/s (1.92 rad/s)
J4
195 °/s (3.4 rad/s)

Motion Range

J1
±180°
J2
+90° - 45°
J3
+15.5° - 120°
J4
±360°
