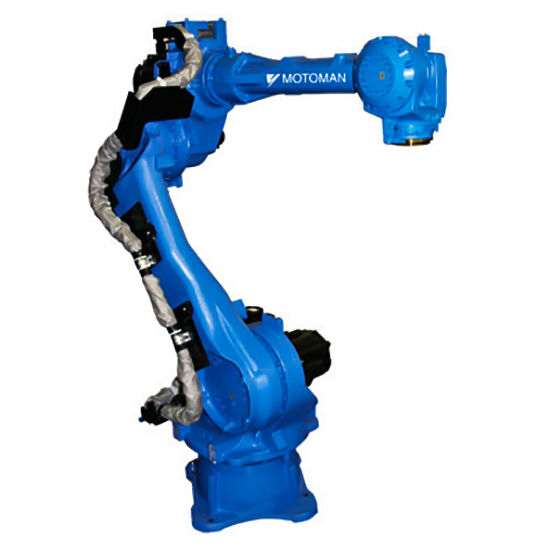

The Motoman MPL80 II is the advanced palletizing robot that comes equipped with the DX200 controller. The Motoman MPL80 II has 5 controlled axes and can handle an 80 kg payload. Versatile in its palletizing abilities, the MPL80 II can perform case palletizing, bag palletizing, order picking, and more. It has an upgraded design with internally routed cables to create maximum reliability, and has a compact base to reduce footprint.

Specs

Reach
2061 mm
Axes
5
Repeatability
0.07 mm
Mass
550 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
170 °/s (2.97 rad/s)
J2
170 °/s (2.97 rad/s)
J3
170 °/s (2.97 rad/s)
J4
170 °/s (2.97 rad/s)
J5
350 °/s (6.11 rad/s)

Motion Range

J1
±180°
J2
+135° - 90°
J3
+35° - 160°
J4
±15°
J5
±360°
