Motoman MS100
Contact us:
Details

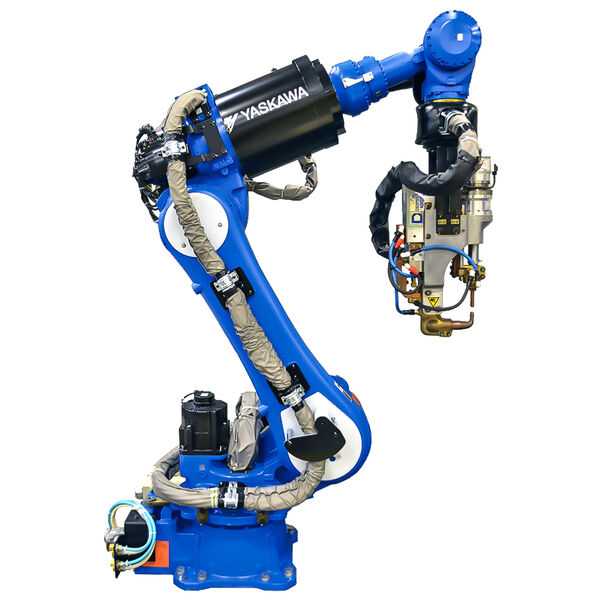

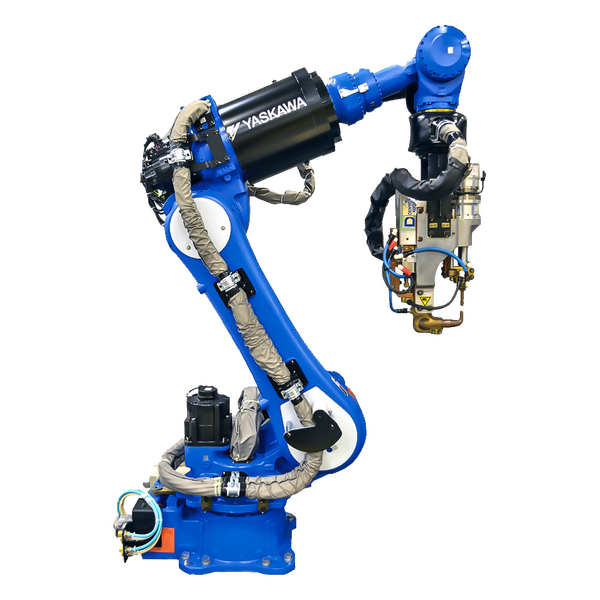

The Motoman MS100 is an advanced spot welding robot. With 6-axis, vertically articulated, and a 100 kg payload, this MS100 can handle heavy objects while welding with precision. It comes with a new preventative maintenance function that can help save you thousands. It also has the new space-saving controller design.
A small or medium welding gun can be mounted on this MS100 robot. DeviceNet is included in the standard specifications.
Also available as Motoman MS100 II with the advanced DX200 controller.
Call in at 877-762-6881 to advance your spot welding with this MS100 robot today!
Specs
Reach
2237 mm
Axes
6
Repeatability
0.07 mm
Mass
625 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
140 °/s (2.44 rad/s)
J2
110 °/s (1.92 rad/s)
J3
130 °/s (2.27 rad/s)
J4
175 °/s (3.05 rad/s)
J5
175 °/s (3.05 rad/s)
J6
255 °/s (4.45 rad/s)

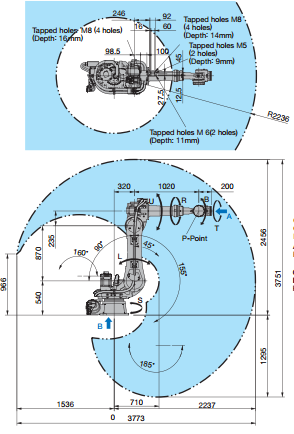

Motion Range
J1
±180°
J2
+155° - 90°
J3
+160° - 185°
J4
±205°
J5
±120°
J6
±180°
Applications
