Motoman PX1850

Motoman

Request a Quote 1/4

Contact us:
Reach
Reach
1835 mm
Axes
Axes
6

Details

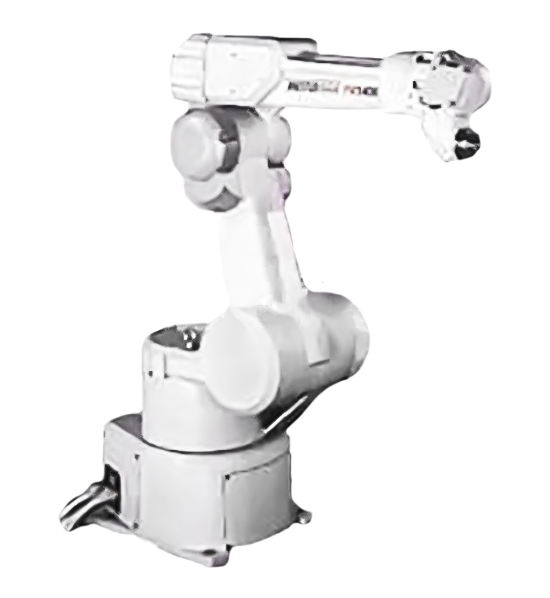

The high-speed Motoman PX1850 robot is available with either a three-roll or Lemma-style wrist, providing versatility and a smooth, superior performance in standard industrial and automotive coating applications. The three-roll wrist design is ideal for painting contoured parts such as car bodies and interior/exterior surfaces. The Lemma wrist is well-suited for painting horizontal and vertical planes.

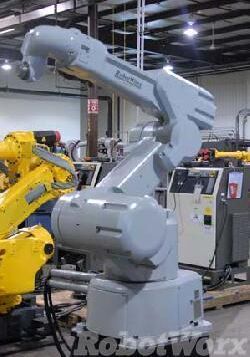

The used Motoman PX1850 is also for sale at Robots.com. The used PX1850 is a great choice if you are looking to cut initial investment costs even further. All used motoman PX1850 robots go through a very rigorous reconditioning process.

The PX1850 XRC robot is Factory Mutual (FM) approved for Class 1, Div. 1 use in hazardous environments. The compact design of the highly flexible, six-axis PX1850 XRC robot makes it easy to mount on the floor, wall or ceiling. The PX1850 is also available in a floor mounted configuration.

Optional devices such as 24-color CCU, FGP, washing unit valve, and master valve can be mounted on the upper arm, resulting in reduced tact time and wasted paint.

Specs

Reach
1835 mm
Axes
6
Repeatability
0.5 mm
Mass
360 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Range

J1
±90°
J2
±100°
J3
+5° - 163°
J4
±260°
J5
±140°
J6
±260°
