Motoman SDA5F
Contact us:
Reach
845 mm
Axes
8
Reach
845 mm
Axes
8
Details

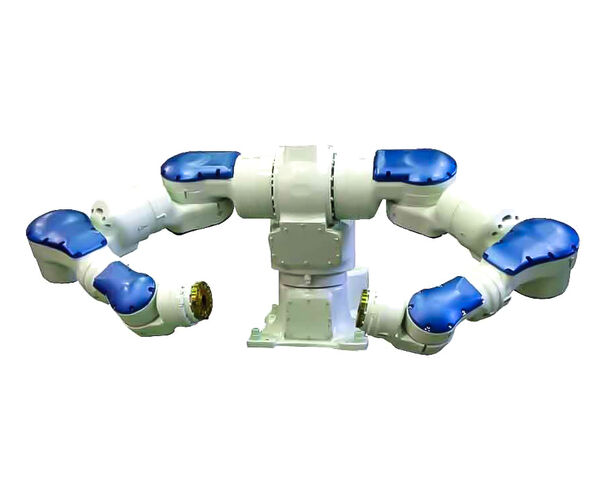

The Motoman SDA5F is a dual arm robot featuring a 5 kg payload on each arm. This SDA5F robot is designed for more complex assembly applications. With a flexible design and best-in-class wrist, the Motoman SDA5F provides human like performance, only with faster speed and accuracy.
Specs
Reach
845 mm
Axes
8
Repeatability
0.06 mm
Mass
110 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
180 °/s (3.14 rad/s)
J2
200 °/s (3.49 rad/s)
J3
200 °/s (3.49 rad/s)
J4
200 °/s (3.49 rad/s)
J5
200 °/s (3.49 rad/s)
J6
200 °/s (3.49 rad/s)
Motion Range
J1
±170°
J2
+270° - 90°
J3
±110°
J4
±170°
J5
+115° - 90°
J6
±180°
