Details

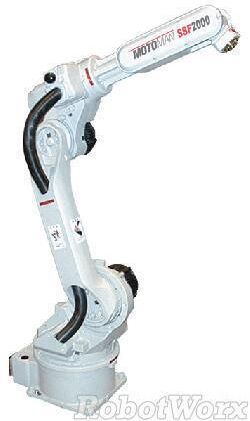

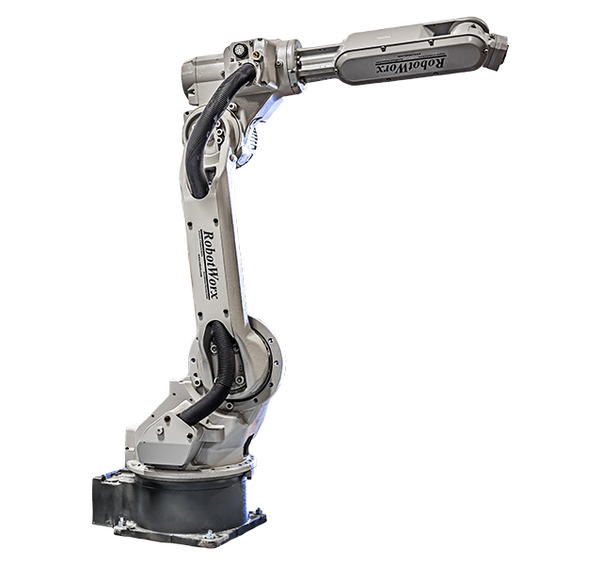

Motoman SSF2000 is a compact robot that features a 6 kg payload and the widest working envelope in its class. With built-in collision avoidance and the ability to cut cycle time by fifteen percent, the SSF2000 NX100 robot is ideal for maximum productivity.

This Motoman SSF2000 industrial robot is used commonly for packaging applications.

If you are looking to cut investment costs even further, then consider a refurbished Motoman SSF2000. This used SSF2000 has undergone a very meticulous reconditioning process. Whether you purchase a new or used Motoman SSF2000 you will not be disappointed! Contact Robots.com today!

Specs

Reach
1378 mm
Axes
6
Repeatability
0.08 mm
Mass
130 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
210 °/s (3.67 rad/s)
J2
190 °/s (3.32 rad/s)
J3
210 °/s (3.67 rad/s)
J4
400 °/s (6.98 rad/s)
J5
400 °/s (6.98 rad/s)
J6
600 °/s (10.47 rad/s)

Motion Range

J1
±170°
J2
+155° - 90°
J3
+250° - 175°
J4
±180°
J5
+225° - 45°
J6
±360°
